Notre Dame will not be Steady and Urgently Wants Reinforcing

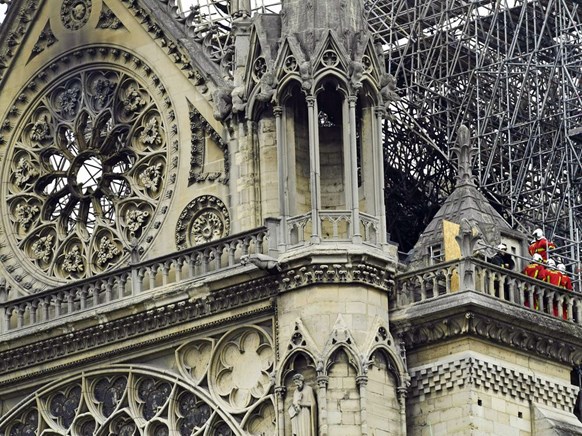

Image courtesy Bloomberg

That’s the conclusion of the preliminary evaluation of injury attributable to the fireplace which destroyed its roof and spire on the night time of 15 April. The collapse of part of the vaults has severely diminished the security of its structural system, which, within the case of a Gothic cathedral, doesn’t depend on the heavy mass of the partitions, as in classical structure, however on discharging weight via clustered columns, exterior flying buttresses and counter-supports—a structural “exoskeleton” that till now has been extraordinarily efficient and resilient.

Image courtesy Bloomberg

Paolo Vannucci, a mechanical engineer on the College of Versailles, has modelled the engineering of the construction and proven that the partitions of Notre Dame may collapse underneath the strain of wind speeds greater than 90km per hour, whereas earlier than the fireplace they might face up to winds of as much as 220km per hour, in order that they urgently want short-term helps. The steadiness of the vaults can also be inflicting concern as a result of the stone has been weakened by the fireplace and the burden of tons of water and the molten lead of the roof masking. Strengthening and restoring the structural system of Notre Dame should, subsequently, be the first aim within the rebuilding course of, and it’ll definitely require extra time than initially thought (President Macron introduced the cathedral could be restored inside 5 years).

The partitions should be bolstered, and the rib vaults rebuilt and consolidated so as to permit the alternative of the roof, which itself performs an necessary structural position within the general body of the monument. The fleche (spire) erected by Eugène Viollet-le-Duc in 1860, which collapsed within the fireplace, was structurally unbiased of the roof and partitions, resting on the pillars of the crossing of nave and transept, however its weight additionally contributed to the steadiness of the constructing. With a Gothic constructing, the vertical forces are discharged down the partitions, whereas horizontal forces reminiscent of wind strain are discharged via clustered columns, the exterior flying buttresses and counter-supports. The completely different components of the cathedral thus type a unitary system, however the preliminary proposals have been for separate restoration of the principle construction, the roof, and the broken or misplaced ornamental components, and for the rebuilding of the spire.

In truth, two days after the fireplace, President Macron invited architects round the world to suggest concepts for a brand new one, as if it had been a component unbiased of the remainder of the constructing. Whether or not the federal government now launches an architectural competitors or decides to depend on the extremely skilled our bodies in command of French monuments (specifically, the Compagnie des Architects en Chef, to which Philippe Villeneuve, the architect in command of Notre Dame, belongs), it ought to demand an built-in challenge for the whole construction and never permit the design and implementation processes to be fragmented.

Notre Dame has Unesco World Heritage standing, and this requires the conservation, restoration and reconstruction ideas promoted by the World Heritage Conference, and the Worldwide Council on Monuments and Websites (ICOMOS) Charters, to be taken into consideration. The architectural varieties which have been misplaced must be reinstated, though this undoubtedly doesn’t preclude the usage of fashionable methods, supplies, fire-prevention measures and superior monitoring applied sciences.

On 10 Might, the Assemblée nationale (parliament) adopted particular laws for the restoration and reconstruction of Notre Dame, which is anticipated to be handed within the senate on 27 Might. This doesn’t handle technical points, however creates a public company in command of managing procedures, which have been streamlined.
